Heim VMC-Bearbeitungszentrum

Advanced Technology VMC650 FANUC CNC Vertikal-Maschinenzentrum

Advanced Technology VMC650 FANUC CNC Vertikal-Maschinenzentrum

Unser vertikales CNC-Bearbeitungszentrum VMC650 ist eine leistungsstarke Kernanlage für die Bearbeitung mittelgroßer Präzisionsteile. Es vereint fortschrittliche Technologie mit praktischem Design. Dank seiner robusten, integrierten Struktur und des optimierten Rippendesigns gewährleistet es einen stabilen Betrieb auch bei anspruchsvollen Zerspanungsarbeiten. Ausgestattet mit einer hochtourigen Präzisionsspindel mit professioneller Kühlung, bietet es konstante Leistung und eine lange Lebensdauer. Der Verfahrweg ermöglicht die problemlose Bearbeitung mittelgroßer Werkstücke, während das präzise Servosystem eine exakte Bewegungssteuerung garantiert. Kompakt, einfach zu installieren und zu bedienen, unterstützt es flexible Konfigurationen und findet breite Anwendung im Maschinenbau, der Automobilzulieferindustrie und im Formenbau. Es liefert zuverlässige Leistung und ein hervorragendes Preis-Leistungs-Verhältnis für die Fertigung hochwertiger Teile.

Bestellung (Mindestbestellmenge) :
1
Produktursprung :
China
Farbe :
Customized
Verschiffungshafen :
Shanghai/Qingdao
Lieferzeit :
30
Gewicht :
4000kg

Jetzt anfragen

Advanced Technology VMC650 FANUC Cnc Vertical Machine Center

CNC lathe and milling machine

Heavy-duty cast iron structure with aging treatment, high rigidity, low vibration, stable long-term operation.
X/Y/Z travel 650×500×500mm, BT40 spindle (5.5/7.5kW, 8000–10000rpm), high cutting efficiency.
Precision linear guides & C3 ball screws, positioning accuracy ±0.008mm, repeatability ±0.005mm.
16-tool automatic tool changer (ATC), fast tool change, supports one-stop milling/drilling/tapping/boring.
Compatible with Fanuc/Siemens/Mitsubishi systems, full protection, easy operation & maintenance.

Ideal for auto parts, molds, hardware, aerospace & small-batch precision machining.

specification

Specification	Unit	VMC650
Table size	mm	800*500
T Slots	-	5-18-90
Max table load	Kg	400
Table travel X	mm	600
Table travel Y	mm	500
Table travel Z	mm	500
Spindle nose to table surface	mm	120-620
Spindle center to column surface	mm	573
Spindle speed range and driving method	rpm	8000 belt driving
Spindle taper	/	BT40
Spindle diameter	mm	120
Cutting feed speed	mm/min	1-10000
X/Y/Z Rapid feed speed	m/min	36/36/32
Hiwin lead screw		4016
Hiwin linear guide		X：35、Y：35、Z：35
Magazine capacity	T	24
Magazine type		Disc type
Max tool diameter(No adjacent tool)	mm	φ80/150
Controller		FANUC 0i MF3B
Spindle motor power	Kw	5.5/7.5
Positioning accuracy(JIS standard)	mm	±0.004
Repeatability Positioning accuracy(JIS standard)	mm	±0.003
Net weight	kg	4000
Overall size	mm	300022502450

Product Advantages

SME-oriented

VMC650 is a cost-effective, user-friendly solution for small and medium-sized enterprises, focusing on practicality and efficiency.
Space-saving & Easy Operation

Compact structure saves space, and it’s easy to operate even for beginners with basic CNC experience.
Stable & Cost-efficient

High-precision positioning, durable components and low maintenance reduce rework and long-term operational costs.
Versatile & Customizable

Compatible with mainstream CNC systems, it adapts to auto parts, hardware and mold processing needs.

Details presentation

CNC milling machine for metel mold Competitive price VMC1160 machine

CNC turning milling center Competitive price VMC1160 machine

JIANGSU KINGSTON MACHINE TOOLS GROUP CO.,LTD

Jiangsu Kingston Machine Tools Group began making our mark in the metal fabrication world 20 years ago when we established a prominent organization in 1998 marketing, selling, servicing and supporting metal working equipment and material handling products in the International market. Wanting to offer our customers a more flexible and higher quality line of machine tools to meet their most exacting needs we extensively researched and then approached the finest producers of metal fabrication equipment around the globe including the world's largest volume manufacturer of Gear Hobbing, CNC Metal Spinning Machine, Press brakes and Plate rolls etc to build machines to our specifications under the Kingston label. Our machines include Gear Hobbing, CNC Metal Spinning Machine, Hydraulic iron worker machine, press brake, shearing machine, rolling machine, section bender punching machines plasma and laser cutting machines, as well as Lathe machine etc.

Why choose u

Mature And Stable Technology
With years of experience in manufacturing industrial machine tools and CNC equipment, we adopt mature and stable processes from structural design, core component selection to complete machine assembly. Our machines feature reliable performance, low failure rate and good precision retention, able to meet long-term continuous production demands, making us the preferred partner for customers worldwide.
Support Customized Solutions
We provide exclusive customized solutions according to customers’ workpiece specifications, processing technology, production capacity and on-site conditions, including CNC system, travel, speed, tool changer, fixture and automation upgrading. One machine with one solution to help you improve efficiency, reduce cost and enhance competitiveness.
Complete After-sales Service
We have a professional after-sales and technical team to provide worldwide installation, commissioning, operation training and maintenance guidance. 24-hour online service.Quick response for any equipment problem, timely remote technical support and on-site service if necessary, ensuring uninterrupted production and worry-free use.

Our certification

Authoritative Certifications, Stable and Reliable Quality.

Lathes manufacturer

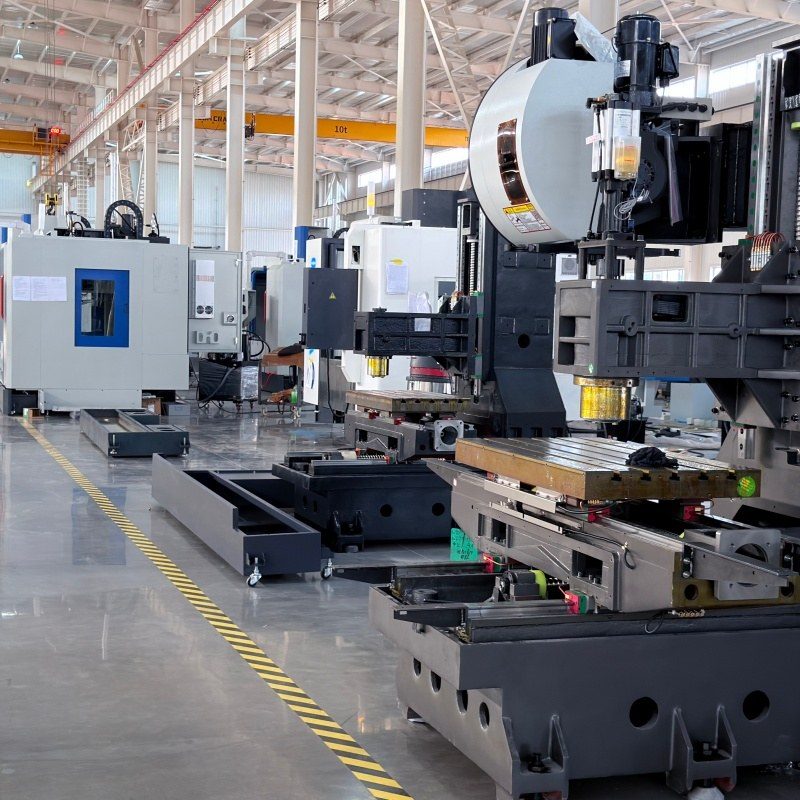

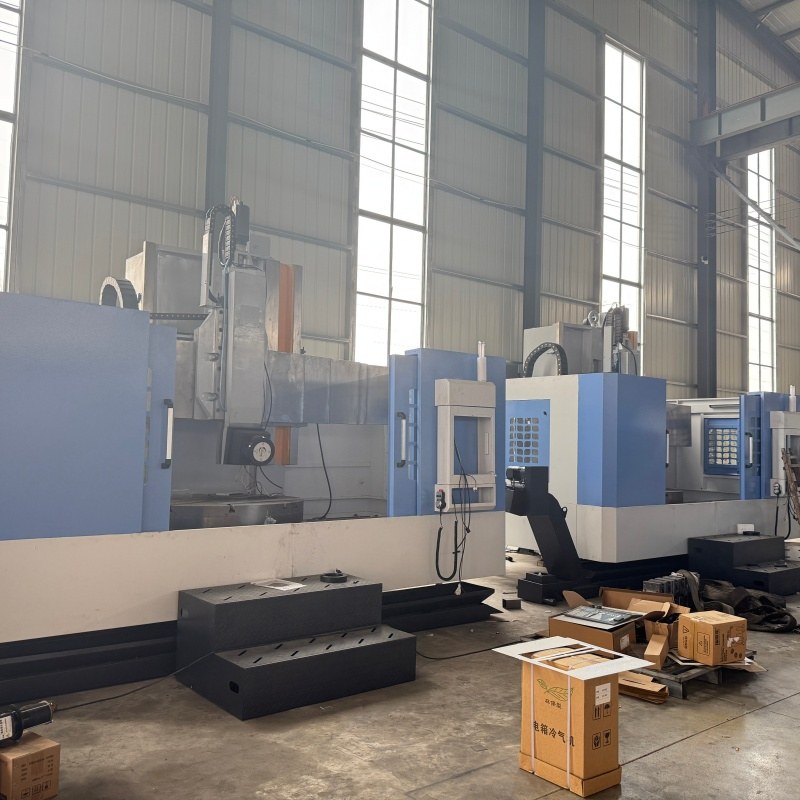

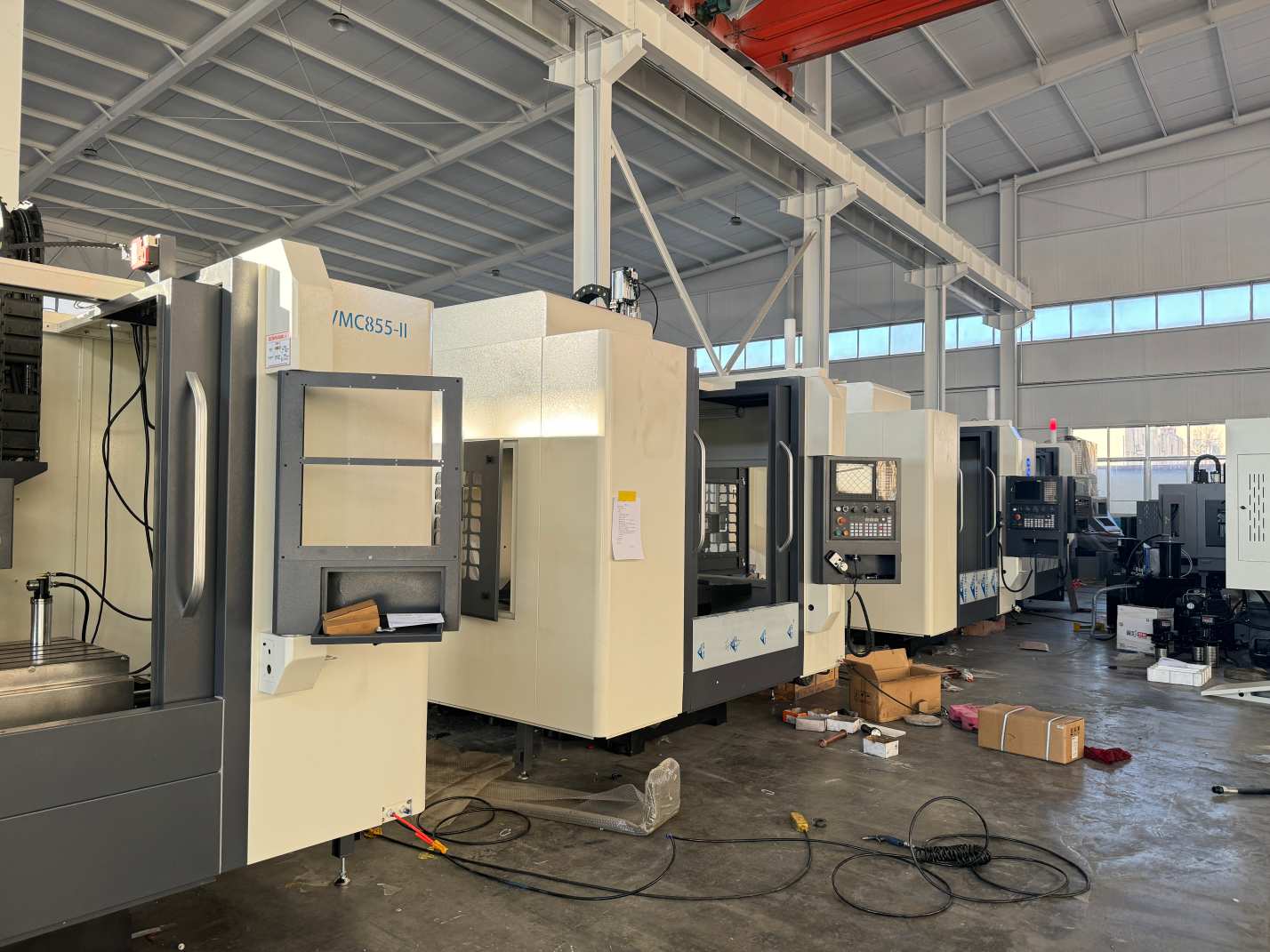

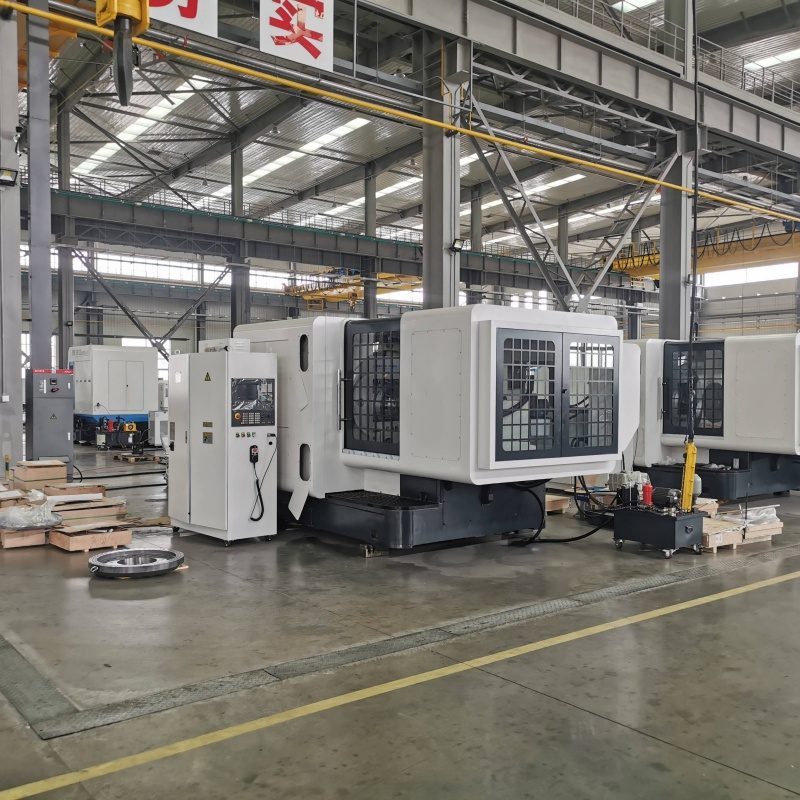

factory show

Professional Production Base, Strength in Precision Manufacturing

Heavy machinery Factory Exhibition VMC machine $High-quality cnc lathe$

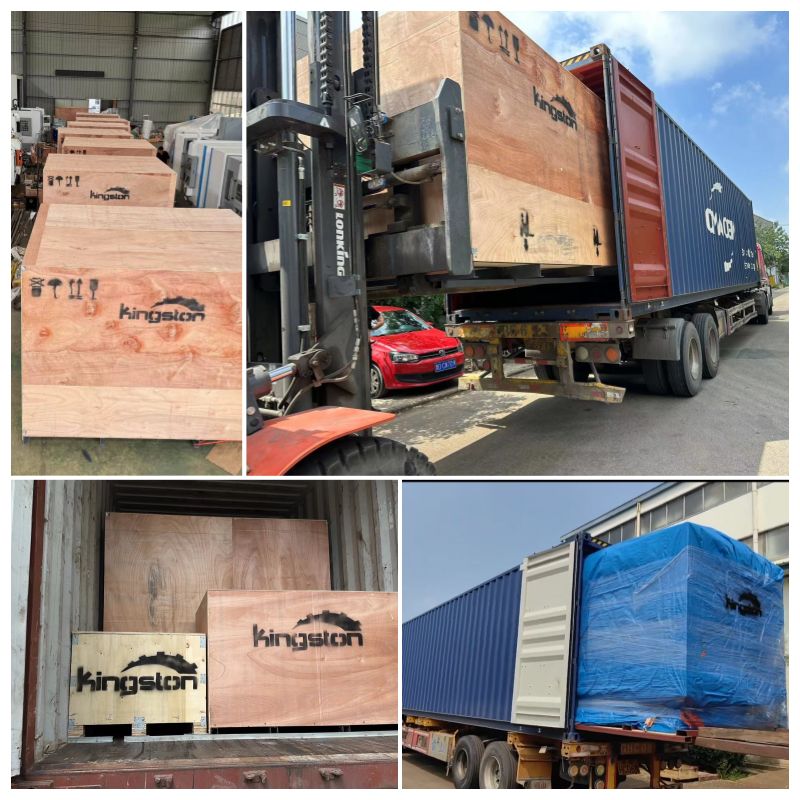

Packing and shipping

Safe & Professional Transportation, On-Time Delivery Guaranteed

Long service life VMC650 center

Heavy machinery manufacturer

1. Q: What is the spindle speed range of this machining center?

A: The spindle speed can be adjusted steplessly, with a wide speed range, suitable for both high-speed finishing and heavy-duty rough machining.

2. Q: How efficient is the automatic tool change function?

A: Equipped with a high-speed automatic tool changer, the tool change time is short, which greatly improves the overall processing efficiency and reduces manual operation.

3. Q: Can the machine be connected to an automatic production line?

A: Yes, it supports connection with automatic loading and unloading equipment, which can realize unmanned operation and adapt to large-scale mass production.

4. Q: What is the service life of the machine under normal use?

A: With high-quality components and strict manufacturing processes, the machine has a long service life, and can maintain stable performance after long-term continuous operation.

5.Q: Does the machine have a safety protection system?

A: It is equipped with a full set of safety protection devices, including emergency stop, overload protection and safety door, to ensure the safety of operators and equipment.
