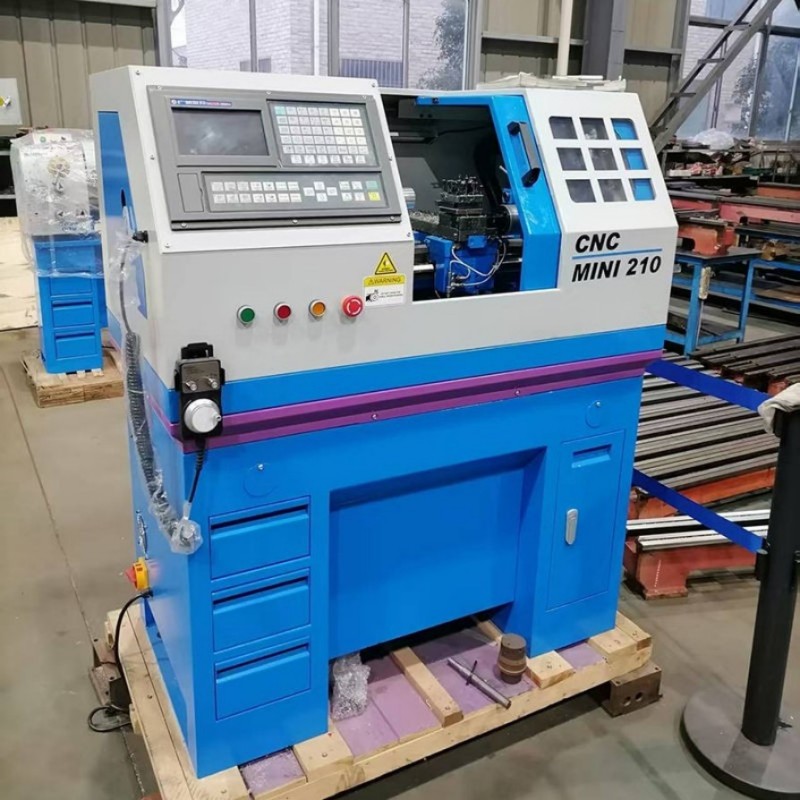

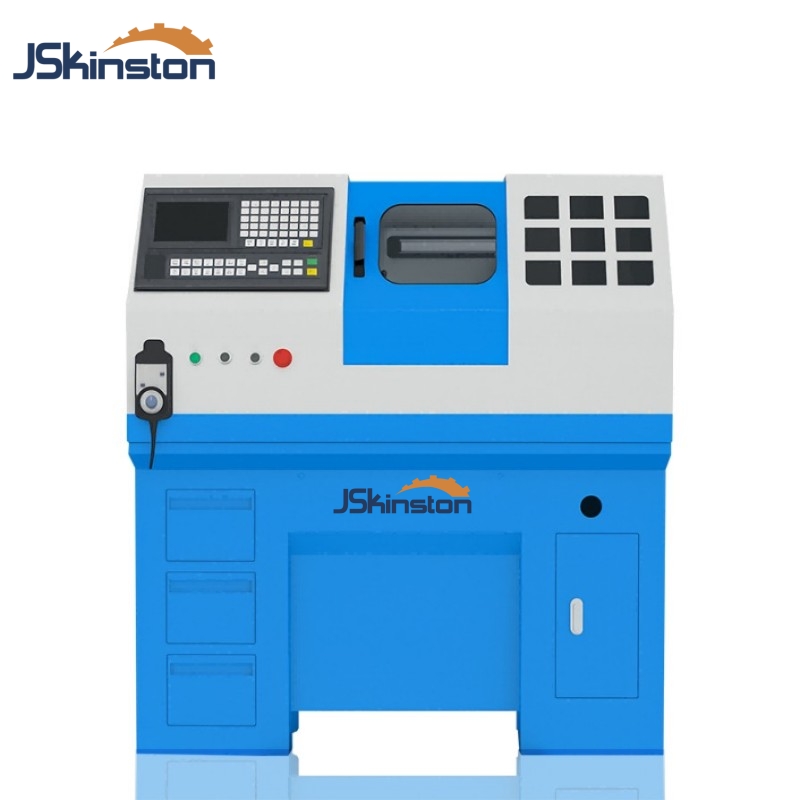

Kingston Mini 210CNC Lathe High Precision Mach for Metal Turning

Kingston Mini 210CNC Lathe High Precision Mach for Metal Turning

The Kingston Mini 210 CNC Lathe is a compact, high-precision 2-axis CNC turning machine designed for light-duty metal fabrication, small-batch production, education, and hobby applications. Engineered for accuracy, reliability, and ease of use, this mini CNC lathe delivers professional-grade metal turning performance in a space-saving footprint, ideal for workshops, labs, and training facilities.

Bestellung (Mindestbestellmenge) :
1
Produktursprung :
China
Verschiffungshafen :
Shanghai
Lieferzeit :
40
Gewicht :
300kg

Jetzt anfragen

CNC 210 Mini Lathe

The CNC slant bed lathe represents the gold standard for modern precision turning. With superior chip management, exceptional rigidity, high-speed capabilities, and multi-axis options, these machines deliver faster cycle times, tighter tolerances, and greater efficiency than traditional flat bed designs. Whether you need simple 2-axis turning or complex mill-turn operations in a single setup, a slant bed CNC lathe provides the performance, reliability, and flexibility to meet your production goals.

Applications:

1.Precision metal parts manufacturing

2.Educational training & vocational schools

3.Hobby & DIY metalworking

4.Small-batch production of shafts, pins, and bushings

5.Prototype development & mold making

specification


Model NO	KST-210 CNC
Rotary diameter	210mm
Machine body length	400mm
Machine body width	100mm
Spindle speed	50-2500r/min
Main cone taper	MT3
Z-axis movement speed	2000mm/min
X-axis movement speed	1000mm/min
Z-axis feed speed	500mm/min
X-axis feed speed	250mm/min
Z-axis maximum torque	2Nm
Maximum torque of X-axis	2Nm
Z-axis travel	250mm
X-axis stroke	X80mm
Z-axis motor torque	4N
X-axis motor torque	2N
Number of tools	4
Knife holder angle	360°
Tailstock taper	MT2
Tailstock stroke	50mm
Z/X-axis return accuracy	0.01mm
Tool rotation accuracy	0.005mm
Main motor power	1200W
Package size	15306001500mm
Weight(n.w/g.w)	250KG/300KG

product introduction

High Precision Performance
With a maximum swing of 210mm and distance between centers of 400mm, the Mini 210 ensures exceptional accuracy with positioning and repeatability of ±0.01mm, perfect for precision parts machining.
Compact & Sturdy Structure
Built with a heavy-duty cast iron flat bed and high-rigidity linear guides, this benchtop lathe minimizes vibration during high-speed turning, guaranteeing smooth surface finishes and long-term stability.
Powerful & Efficient Spindle
Equipped with a 1.1kW/1.2kW spindle motor (servo optional) and a spindle speed range of 50–2250rpm, it handles various metals—mild steel, aluminum, brass, and stainless steel—with consistent power.

JIANGSU KINGSTON MACHINE TOOLS GROUP CO.,LTD

Jiangsu Kingston Machine Tools Group began making our mark in the metal fabrication world 20 years ago when we established a prominent organization in 1998 marketing, selling, servicing and supporting metal working equipment and material handling products in the International market. Wanting to offer our customers a more flexible and higher quality line of machine tools to meet their most exacting needs we extensively researched and then approached the finest producers of metal fabrication equipment around the globe including the world's largest volume manufacturer of Gear Hobbing, CNC Metal Spinning Machine, Press brakes and Plate rolls etc to build machines to our specifications under the Kingston label. Our machines include Gear Hobbing, CNC Metal Spinning Machine, Hydraulic iron worker machine, press brake, shearing machine, rolling machine, section bender punching machines plasma and laser cutting machines, as well as Lathe machine etc.

Why choose us

Community charging overall solution covers all application

Mature And Stable Technology
With years of experience in manufacturing industrial machine tools and CNC equipment, we adopt mature and stable processes from structural design, core component selection to complete machine assembly. Our machines feature reliable performance, low failure rate and good precision retention, able to meet long-term continuous production demands, making us the preferred partner for customers worldwide.
Support Customized Solutions
We provide exclusive customized solutions according to customers’ workpiece specifications, processing technology, production capacity and on-site conditions, including CNC system, travel, speed, tool changer, fixture and automation upgrading. One machine with one solution to help you improve efficiency, reduce cost and enhance competitiveness.
Complete After-sales Service
We have a professional after-sales and technical team to provide worldwide installation, commissioning, operation training and maintenance guidance. 24-hour online service.Quick response for any equipment problem, timely remote technical support and on-site service if necessary, ensuring uninterrupted production and worry-free use.

our certification

Authoritative Certifications, Stable and Reliable Quality.

Manual Lathe

factory show

Professional Production Base, Strength in Precision Manufacturing

mini lathe Slant Bed CNC lathe cutting cnc lathe

Packing and shipping

Safe & Professional Transportation, On-Time Delivery Guaranteed

lathe
Heavy machinery manufacturer

1.What CNC control systems are compatible?

These lathes are compatible with popular CNC controllers including Siemens, Fanuc, GSK, KND, and other standard systems. Please specify your preference when ordering.

2.Where can I use the Kingston Mini 210 CNC Lathe?

It fits perfectly for small home workshops, garage machining, vocational school training, hobby DIY metal turning, small batch precision parts production and prototype making..

3.How long is the warranty period of this product?

We provide one-year warranty for the industrial universal lathe.

4.What is the MOQ and delivery time of the lathe?

MOQ 1 set, delivery in 40 working days after advance payment.

5.Can a slant bed lathe perform milling and drilling?

Yes, with optional live tooling and C-axis capability, a slant bed CNC lathe can perform milling, drilling, tapping, and off-center machining in a single setup, eliminating secondary operations.
