Heavy Duty Large Scale Vertical XK5032 CNC Milling Machine

Heavy Duty Large Scale Vertical XK5032 CNC Milling Machine

The XK5032 vertical CNC milling machine is a cost-effective and compact numerical control processing machine tool, well-recognized for general precision machining and small-batch production. Adopting a solid vertical frame and overall cast iron structure, it gains excellent rigidity and vibration resistance during continuous cutting. It is capable of automatic milling, drilling, tapping, slotting and complex curve machining, perfectly suitable for daily workshop processing, tool making and spare parts manufacturing.

Bestellung (Mindestbestellmenge) :
1
Produktursprung :
China
Farbe :
Customized
Verschiffungshafen :
Qingdao
Lieferzeit :
30
Gewicht :
2900Kg

Jetzt anfragen

Heavy Duty Large Scale Vertical XK5032 CNC Milling Machine

Equipped with a reliable industrial CNC system and high-precision transmission components, the XK5032 runs with stable feeding, accurate positioning and easy programming.

All key cast parts pass professional stress relief treatment to avoid deformation and guarantee long-term consistent accuracy.

With small footprint, flexible operation and low maintenance cost, this model is an ideal choice for machinery factories, technical schools, repair workshops and customized small-scale component processing.

specification

Specification	Units	XK5040	XK5032
Table size	mm	1700*400	1600*320
T slots(N/W/D)	mm	3/18/90	3/18/70
Longitudinal travel	mm	1000	900
Cross travel	mm	350	310
Vertical travel	mm	375	350
Table longitudinal feed(auto)	mm/min	6-3200
Table cross feed(auto)	mm/min	6-3200
Table vertical feed (auto)	mm/min	3-1600
Distance between spindle and table surface	mm	90-465	35-385
Spindle hole taper	一	ISO 50(7:24)
Spindle speed step	step	18
Spindle speed range	r/min	30-1500
Max.swivel angle of head	-	±45°
Stroke of spindle quill	mm	85	70
Power of spindle motor	kw	11	7.5
Torque of×/Y/Z axis AC servo motor	N.m	15/15/23	10/10/18
Overall size	mm	276021602250	204018001910
Net weight	kg	4200	2900

Product Advantages

1.Solid Integrated Cast Iron Body

Greatly reduces cutting vibration, maintaining stable precision during long working hours.
2.Advanced CNC Control System

Supports diversified programming modes, simple operation and high processing consistency.
3.High-Rigidity Vertical Spindle

Provides steady power output for both rough metal cutting and fine finishing.
4.Compact & Practical Layout

Reasonable overall structure saves workshop space and lowers operating costs.
5.Broad Processing Adaptability

Suitable for carbon steel, cast iron, aluminum alloy and other materials in multi-industry production.

JIANGSU KINGSTON MACHINE TOOLS GROUP CO.,LTD

Jiangsu Kingston Machine Tools Group began making our mark in the metal fabrication world 20 years ago when we established a prominent organization in 1998 marketing, selling, servicing and supporting metal working equipment and material handling products in the International market. Wanting to offer our customers a more flexible and higher quality line of machine tools to meet their most exacting needs we extensively researched and then approached the finest producers of metal fabrication equipment around the globe including the world's largest volume manufacturer of Gear Hobbing, CNC Metal Spinning Machine, Press brakes and Plate rolls etc to build machines to our specifications under the Kingston label. Our machines include Gear Hobbing, CNC Metal Spinning Machine, Hydraulic iron worker machine, press brake, shearing machine, rolling machine, section bender punching machines plasma and laser cutting machines, as well as Lathe machine etc.

Why choose us

Mature And Stable Technology
With years of experience in manufacturing industrial machine tools and CNC equipment, we adopt mature and stable processes from structural design, core component selection to complete machine assembly. Our machines feature reliable performance, low failure rate and good precision retention, able to meet long-term continuous production demands, making us the preferred partner for customers worldwide.
Support Customized Solutions
We provide exclusive customized solutions according to customers’ workpiece specifications, processing technology, production capacity and on-site conditions, including CNC system, travel, speed, tool changer, fixture and automation upgrading. One machine with one solution to help you improve efficiency, reduce cost and enhance competitiveness.
Complete After-sales Service
We have a professional after-sales and technical team to provide worldwide installation, commissioning, operation training and maintenance guidance. 24-hour online service. Quick response for any equipment problem, timely remote technical support and on-site service if necessary, ensuring uninterrupted production and worry-free use.

Our certification

Authoritative Certifications, Stable and Reliable Quality.

desktop cnc milling machine

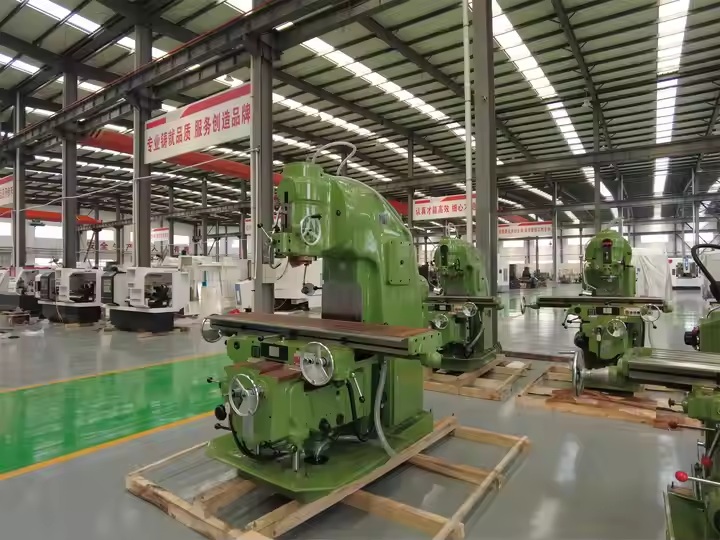

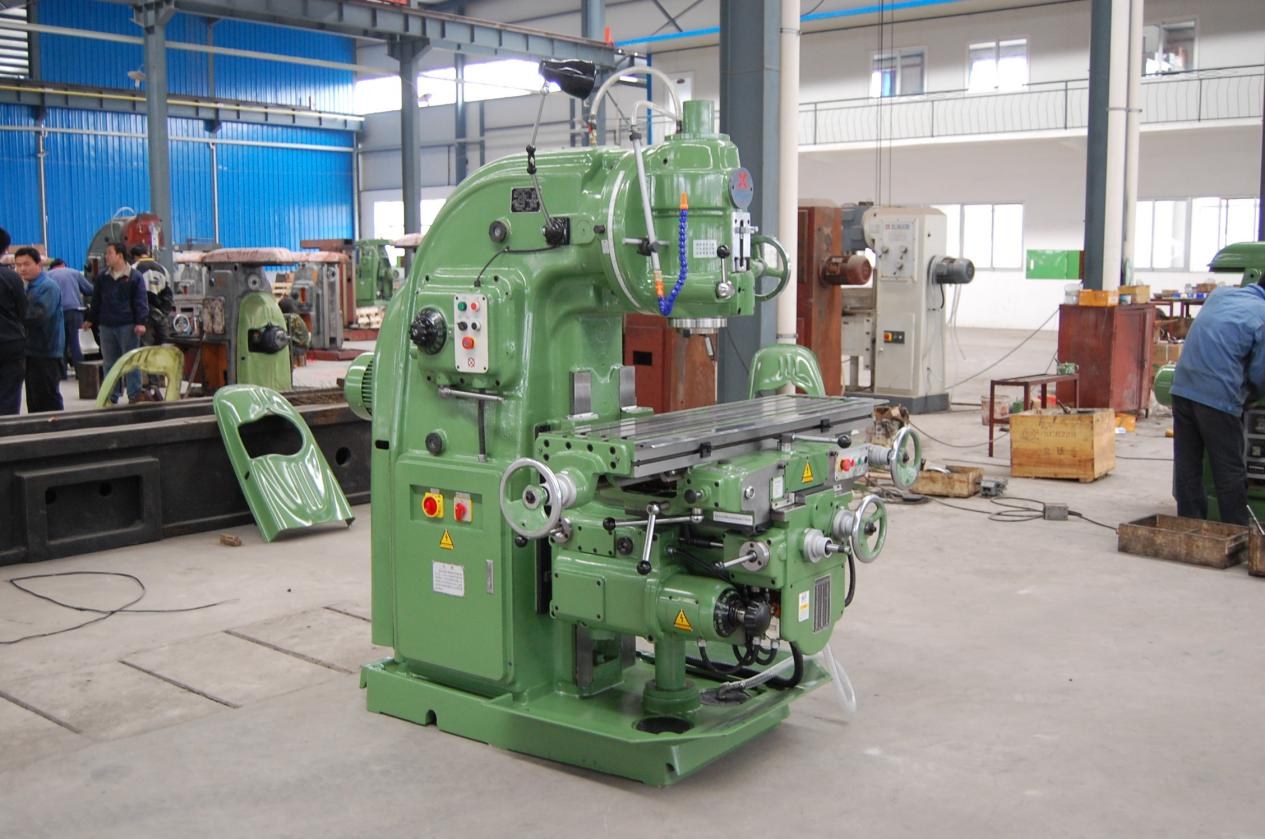

factory show

Professional Production Base, Strength in Precision Manufacturing.

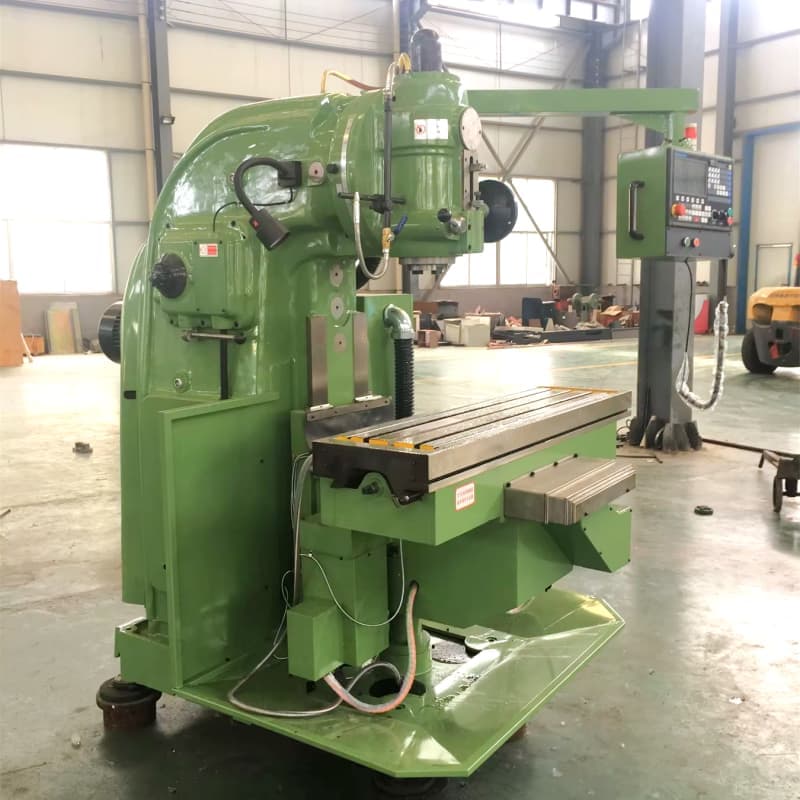

vertical cnc milling machine Heavy Duty CNC Mill

Industrial Milling Machine cnc milling machine xk5040

Packing and shipping

Safe & Professional Transportation, On-Time Delivery Guaranteed

CE CNC universal milling machine

OEM Milling Machine Manufacturer

Q: What makes the XK5032 CNC milling machine cost-effective for workshops?

A: It features compact layout, reliable overall performance and moderate power output, perfectly matching conventional daily machining demands with lower investment cost.
Q: What kinds of workpiece processing can the XK5032 complete?

A: It is capable of face milling, step processing, hole drilling, boring and tapping, covering most conventional mechanical component manufacturing.
Q: How about the running stability of this vertical CNC mill?

A: High-strength cast iron bed and column effectively absorb cutting shock, ensuring smooth operation and good workpiece surface finish.
Q: Is the XK5032 friendly for novice operators?

A: It is equipped with mature CNC system with concise operation steps and easy programming, which shortens the learning cycle for workers.
Q: In which industries is the XK5032 widely applied?

A: Commonly used in machinery manufacturing, hardware processing, equipment maintenance and educational training with strong universal applicability.
